NexM-7KW Wind Turbines
If you need a reliable and affordable wind turbine without notable noise, without any harm to birds, without considerable maintenance costs, and with full after-sale supports and various financing means for your home, farm, or small business, NexM-7KW is the best choice for you.
The NexM-7KW is a Vertical Axis Wind Turbine, and it operates with lower rotational speed, therefore it produces lower noise, and has lower probability of impact with birds in comparison to Conventional Horizontal Axis Wind Turbines (HAWTs)
Our products could be use to power telecom stations as well, and since they are Vertical Axis Wind Turbine, they can be installed near the telecommunication towers with better performance compared to conventional HAWTs.
Main Specifications of NexM-7KW:
Rated Power | 7 KW |
MAX Power | 8 KW |
Rotor Swept Area | 31.5 m2 |
Cut-in | 3 m/s |
Rated Wind Speed | 11 m/s |
Generator | Outer-Rotor AFPMSG – 3-Phase |
Controller | Off/On-Grid – MPPT and PWM, With EV Charger Output Option |
Sensors | Anemometer, Ambient Thermometer, Generator Thermometer, Vibration Sensor, Tachometer, Oil level Sensor |
Tower | Lattice / Monopole – 12/15/18 meters |
Designed Life Time | +25 years |
AEO at 6m/s | 16,300 KWh |
IEC Classification | Class I / Class II |
Patents | IRIPO Serial No.: A/89-026551 and A/89-026550 |

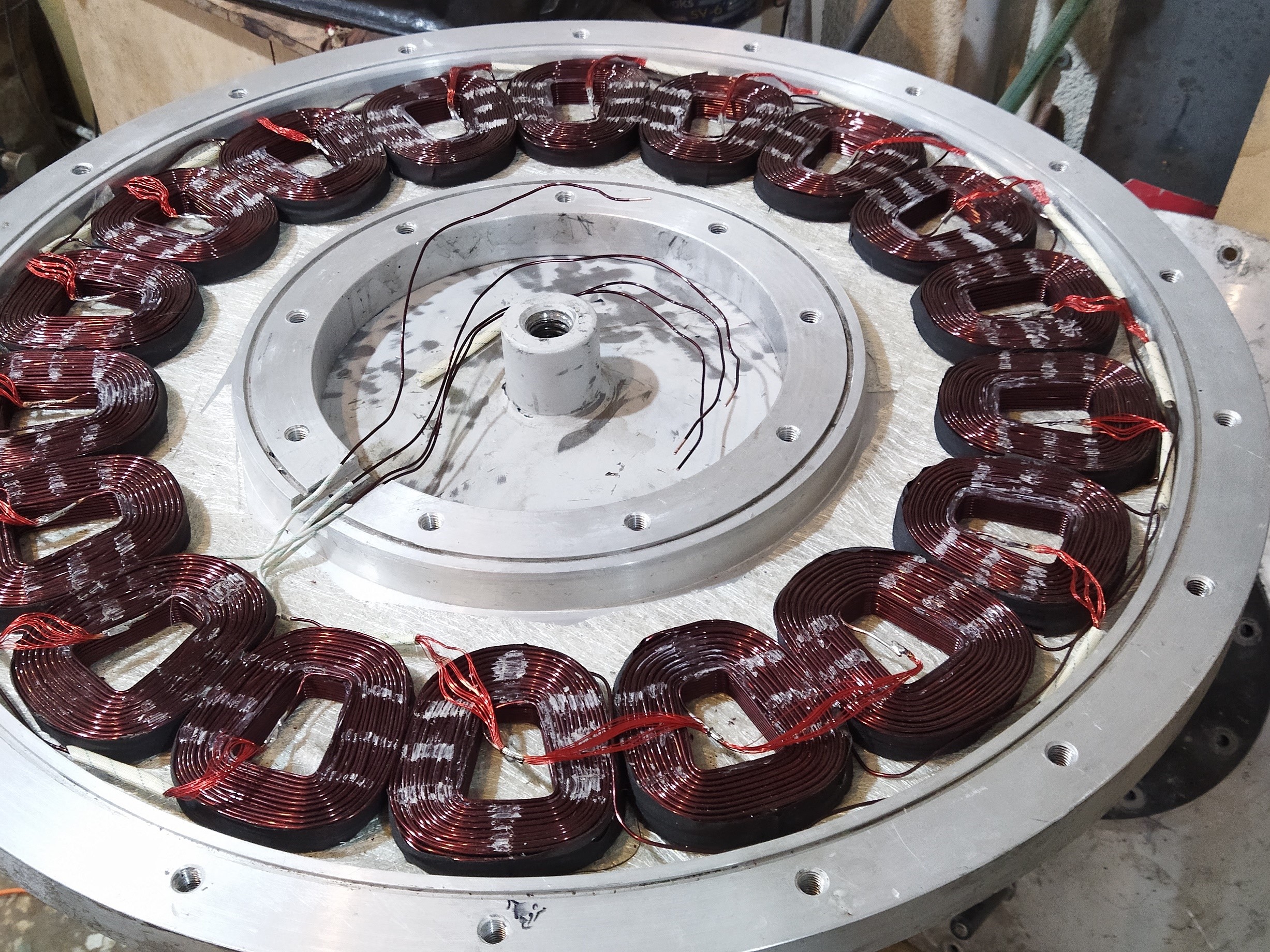

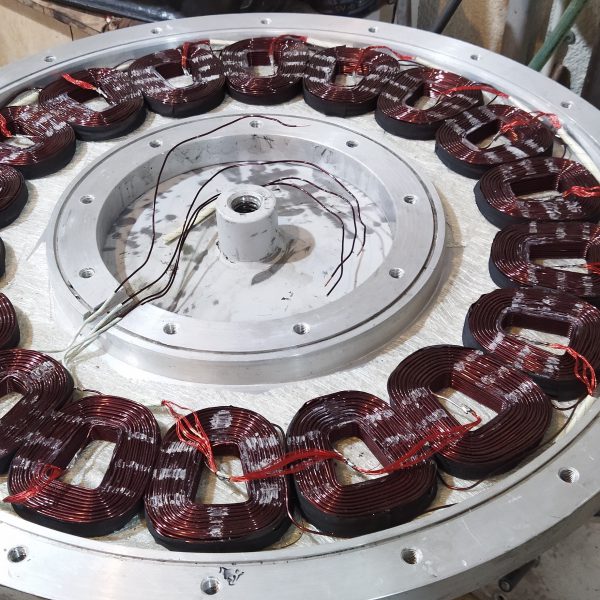

High Quality Permanent Magnet Generators
We have developed the most efficient PM Generators. Our NEXMØLEN Generators are low-RPM with 94% electrical efficiency, and it means lower energy dissipation. If you need a unique and high-performance Generator for your business, contact us now.
- Compact and Efficient (more than 94% at the rated power)
- Outer-Rotor Design – Compatible with the NEXMØLEN rotors
- Simple Design, almost Zero-Maintenance Costs
- High Performance Shaft and Bearing Design for more than 25 Years Life Time
Brake System
Brake System is one of most important and crucial parts in wind turbines. Our NEXMØLEN Brake System benefits from simple and easy-to-maintain design. With NEXMØLEN Brake System your wind turbines will be safely protected in harsh conditions. This System is completely isolated and will operate even without any controller in the system, since it uses a second level safety algorithm.
Tower
If you are looking for a special Tower which is Robust and, at the same time, affordable, you can contact us. Our designing team is creative and has lots of experience in Designing Towers for various types of small-scale wind turbines. We design, analyze, construct and test your desired Towers in shortest time for you.
Hybrid Solution
If you need more reliable power and fully clean energy for your home and business, we recommend our Hybrid Solutions. Based on your location and your energy usage, combining our NexM-7KW with best quality solar system would be a great solution. We can perform initial analysis for you and offer the best choices considering all parameters.
EV Charging System
If you own an Electric Vehicle (EV), or more than one, you care about the future and clean energy. So, to charge your EV(s), it is cleaner to use renewable energy. We are cooperating with most high-performance EV Charger makers to offer the best solutions to you. For more information, please contact us.
